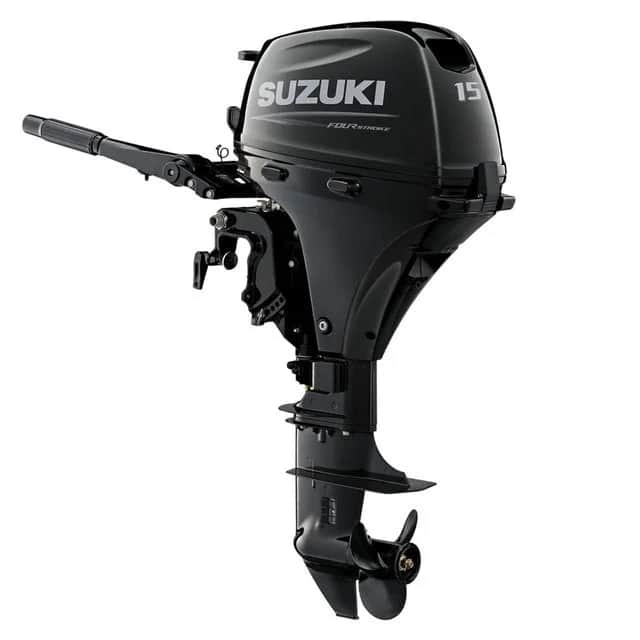

Suzuki 15 HP Outboard Motor DF15AS5

The DF15A EFI stands out as the world’s initial 15 HP outboard motor equipped with Lean Burn and Battery-Less Electronic Fuel Injection, a pioneering design in its class. Suzuki’s EFI system operates without a battery, marking a first in this power category. This “Next Generation” four-stroke engine runs smoothly, providing rapid starting, impressive acceleration, outstanding performance, and remarkable fuel efficiency. Not only does the DF15A EFI boast superior fuel economy, but it also excels with its battery-less fuel injection technology. It delivers all the necessary power to your vessel while eliminating unnecessary weight.

Specifications

•
Model

DF15 AS5

•
Weight

97.0 lb

•
Manufacturer

Suzuki

•
Country of Manufacture

Thailand

•
Horsepower

15 HP

•
Shaft Length

15″ (Short)

•
Steering

Tiller

•
Starting

Manual

•
Trim & Tilt

Manual

•
Fuel Delivery

EFI

•
Fuel Tank

INCLUDED: 3.1 Gallon Fuel Tank and Fuel Line

•
Cylinder(s)

2

•
Displacement

327 cc (20.0 cubic inches)

•
Bore and Stroke

60.4 x 57 mm (2.38 x 2.24 inches)

•
RPM Range

5000-6000 RPM

•
Ignition System

Digital CDI

•
Induction Scavenging

SOHC

•
Valves per Cylinder

2

•
Fuel Type

Unleaded Gasoline (87 octane)

•
Oil Type

SAE 10W-30 or SAE 10W-40

•
Oil Capacity

33.8 fl oz. (1000 mL)

•
Lubrication

Wet Sump; Trochoid Type Cam-Driven Oil Pump

•
Alternator

12V 80W 6A (OPTIONAL)

•
Cooling System

Water-Cooled

•
Saltwater Rated

Yes

•
Gear Ratio

2.08:1

•
Gear Shift

Forward-Neutral-Reverse (front-mounted lever)

•
Propeller

3-Blade Aluminum 9.25″ Dia x 9.0″ Pitch

•
Internal Battery

No

Features

• Electronic Fuel Injection (EFI)

• Sleek, Compact, Lightweight Design

• Saltwater Rated

• Fresh Water Flushing Port

• Multi-Layer Corrosion Protection

• Decompression Release for Easy Starts

• Forward-Mounted Gear Shift Lever

• Twist-Grip Throttle with Tension Control

• Quiet Through-the-Prop Exhaust

• Start-in-Gear Lockout Protection

• Proven Automotive Style Oil Pump

• Shallow Water Drive

• 5 Trim Positions w/Tilt Lock Pin

• Low Oil Pressure Warning System

• Over Heat Warning System

• Over-Rev Limiter Protection

• Steering Friction Tension Control

• Integrated Carrying Handle

• Emergency Lanyard Stop Switch

• 3.1 US Gallon Fuel Tank / Fuel Line

• 3-Blade Aluminum Propeller

• 3-Star Ultra-Low Emission Rating

• Suzuki’s Lean Burn Control System

• Suzuki’s Newest 5-Year Manufacturer Warranty
